GAS TIGHTNESS TESTING MOCK PRACTICAL ASSESSMENT
IGE/UP/1B




INSTRUCTIONS: This Assessment should take no more than 10 minutes. If you are takinglonger your competence and understanding may raise concerns with the assessor. DO NOT;
• Use Your Books (You should know the sequence off by heart)
• Allow Any Smell of Gas Except When Removing the Test Nipple from the Meter
• Ask the Assessor or Anyone Else for Help.
DO;
• Make a note of every fault you find on the Meter Installation and Connected Pipework andFittings. (When looking for faults work your way downstream starting at the gas meter…This way you will not get confused or distracted)
• Follow your learned test sequence and do not divert at any time

































































































































TOOLS NOT REQUIRED YET

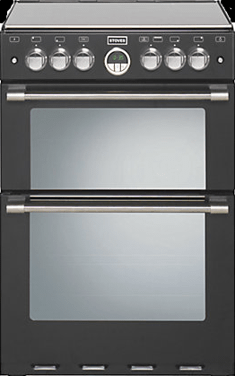

COOKER LID ALREADY UP








TOOLS NOT REQUIRED YET
























TOOLS NOT REQUIRED YET




COOKER LID ALREADY UP







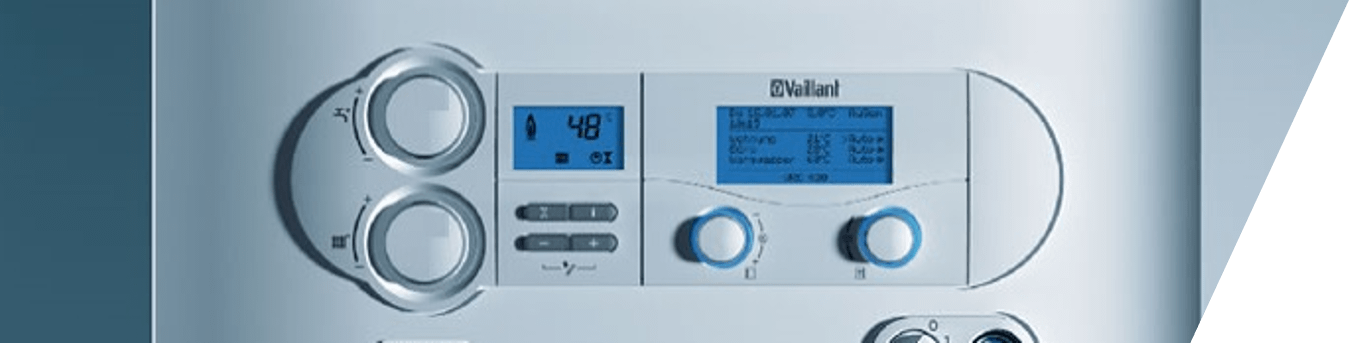

BOILER ALREADY TURNED DOWN

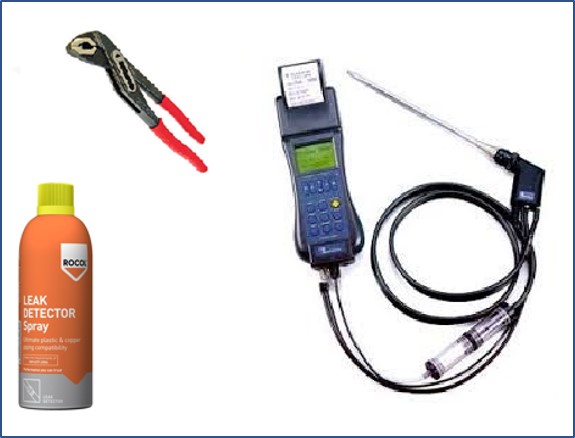

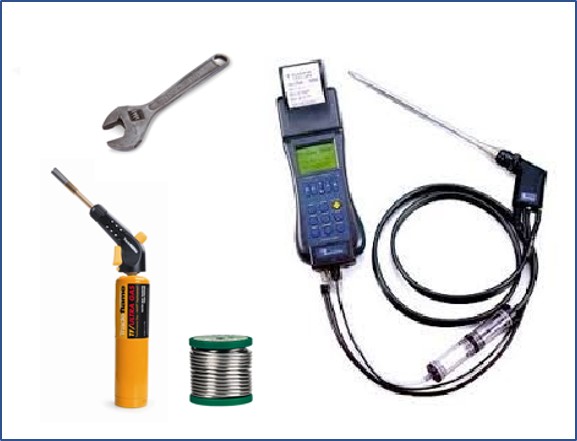

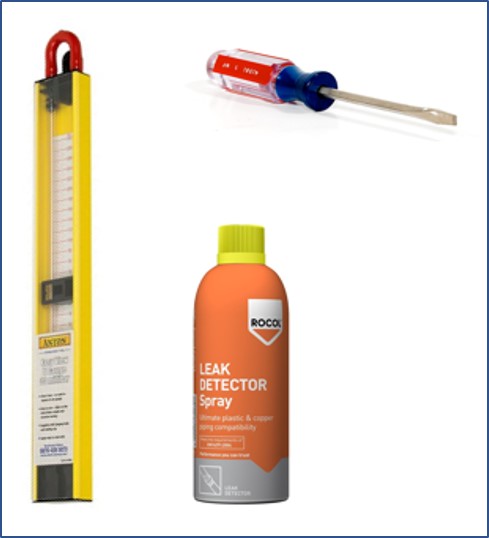

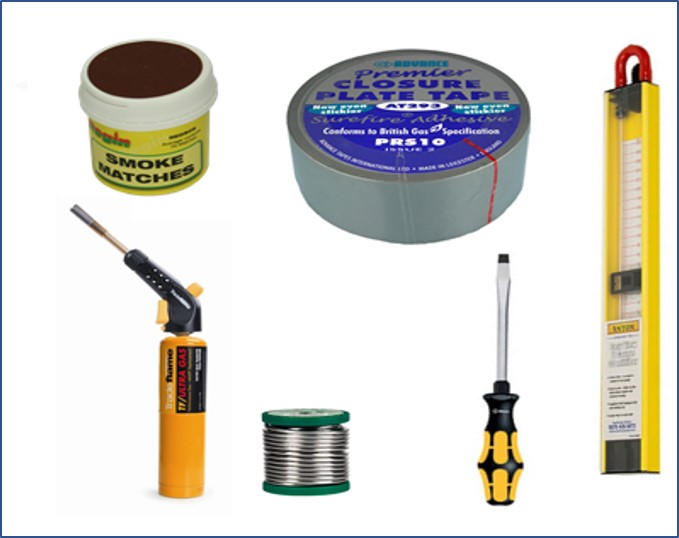

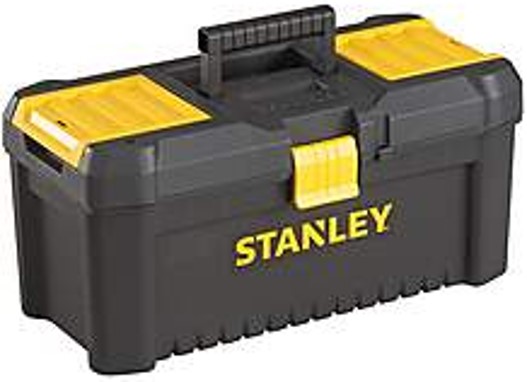

CHOOSE YOUR TOOLKIT




COOKER LID ALREADY UP








ECV IS ALREADY CLOSED




BOILER ALREADY TURNED DOWN






















































































































COOKER LID ALREADY UP








TOOLS NOT REQUIRED YET














































































































TOOLS NOT REQUIRED YET




COOKER LID ALREADY UP








ECV IS ALREADY CLOSED



































BOILER ALREADY TURNED DOWN





TOOLS NOT REQUIRED YET


































TOOLS NOT REQUIRED YET




BOILER ALREADY TURNED DOWN





ECV IS ALREADY CLOSED






























































































































TOOLS NOT REQUIRED YET





ECV IS ALREADY CLOSED








Unsuitable Tools For This Task














WELL DONE – YOUR PREPARATIONS ARE COMPLETE

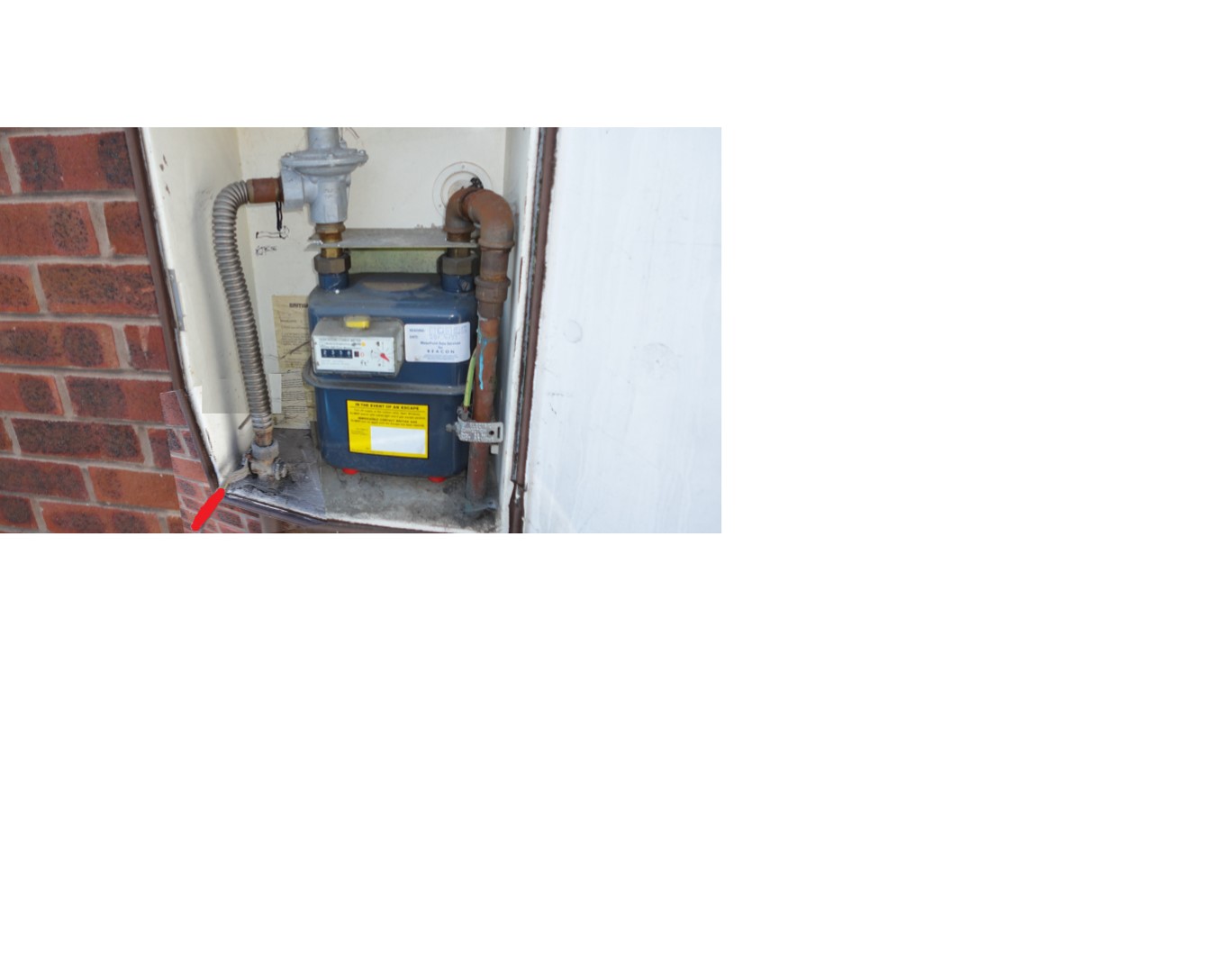

Identify Meter and Pipe Faults
1
2
3
4
5
6
7

CLICK HERE WHEN FINISHED IDENTIFYING FAULTS



ID - Report

AR- Report

NCS - Report

SATISFACTORY



ID - REPORT

AR - REPORT

NCS - REPORT

SATISFACTORY



ID - REPORT

AR – REPORT

NCS - REPORT

SATISFACTORY



ID - REPORT

AR - REPORT

NCS - REPORT

SATISFACTORY



ID - REPORT

AR - REPORT

NCS - REPORT

SATISFACTORY



ID - REPORT

AR - REPORT

NCS - REPORT

SATISFACTORY



ID - REPORT

AR - REPORT

NCS - REPORT

SATISFACTORY




CONTINUE
















NOW IT’S TIME TO START YOUR TEST




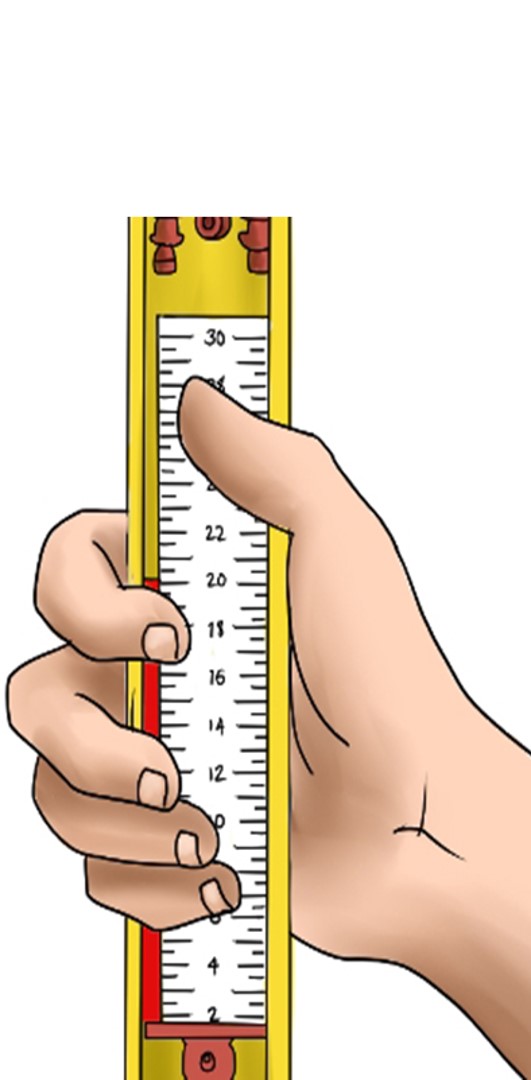

Select Your Pre Connection Manometer Setting

0 Mbar

7 – 10 Mbar

19 Mbar

19 to 23 Mbar

20 to 21 Mbar






CONTINUE





What is Your First Test in the Test Sequence

Working Pressure

Standing Pressure

Let By of ECV

Gas Tightness

Stabilisation





CONTINUE





Select Your Setting Pressure For This Test

0 Mbar

7 – 10 Mbar

19 Mbar

19 to 23 Mbar

20 to 21 Mbar





CONTINUE





What is the test parameter for this Test

0 Mbar Movement

Perceptible Movement 0.25 Mbar Max

1 Mbar Max Rise

3 Mbar Max Rise

1 Mbar Max Fall






CONTINUE





What is the Test Period for this Test

30 Seconds

1 Minute

90 Seconds

2 Minutes

180 Seconds






CONTINUE





What is Your Next Test in the Test Sequence

Working Pressure

Standing Pressure

Let By of ECV

Gas Tightness

Stabilisation





CONTINUE





Select Your Setting Pressure For This Test
1

0 Mbar

7 – 10 Mbar

19 Mbar

19 to 23 Mbar

20 to 21 Mbar





CONTINUE





What is the Test Period for this Test

30 Seconds

1 Minute

90 Seconds

2 Minutes

180 Seconds






CONTINUE







What Action Will You Take if the Gauge Rises or Falls


Cap Meter

Use LDF

Reset to 20/21

Start Tightness

Call ESP




CONTINUE





What is Your Next Test in the Test Sequence

Working Pressure

Standing Pressure

Let By of ECV

Gas Tightness

Stabilisation





CONTINUE





Select Your Setting Pressure For This Test
1

0 Mbar

7 – 10 Mbar

19 Mbar

19 to 23 Mbar

20 to 21 Mbar





CONTINUE





What is the Test Period for this Test

30 Seconds

1 Minute

90 Seconds

2 Minutes

180 Seconds






CONTINUE




What is Your Permissible Drop

(Existing Cooker & Boiler, U6 Meter and Max Pipe Size = 22mm Copper)

0mb / Perceptible Drop

1 Mbar

2.5 Mbar

4.0 Mbar

4.5 Mbar


8.0 Mbar





CONTINUE




What is Your Permissible Drop


(Existing Cooker, New Boiler, U6 Meter and Max Pipe Size = 35mm Copper)

0mb / Perceptible Drop

1 Mbar

2.5 Mbar

4.0 Mbar

4.5 Mbar


8.0 Mbar




CONTINUE

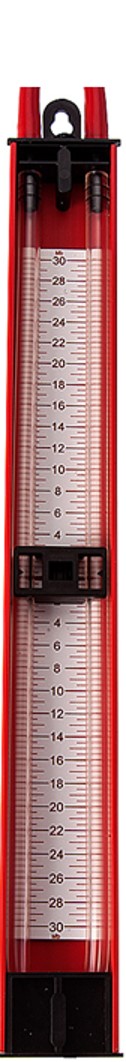

Having Removed the Manometer (U-Gauge) and refitted the test nipple screw what must be done








Now What Would You Like to Do?









Manometer (U-Gauge) No Longer Required





Now What Would You Like to Do?































































YOU ARE NOT FINISHED YET
PLEASE TRY AGAIN



YOU ARE NOT FINISHED YET
PLEASE TRY AGAIN


YOU ARE NOT FINISHED YET
PLEASE TRY AGAIN

























YOU ARE NOT FINISHED YET
PLEASE TRY AGAIN

























YOU ARE NOT FINISHED YET
PLEASE TRY AGAIN

























YOU ARE NOT FINISHED
PLEASE TRY AGAIN
























YOU ARE NOT FINISHED YET
PLEASE TRY AGAIN

























YOU ARE NOT FINISHED YET
PLEASE TRY AGAIN

























YOU ARE NOT FINISHED YET
PLEASE TRY AGAIN

&*
